Product Description

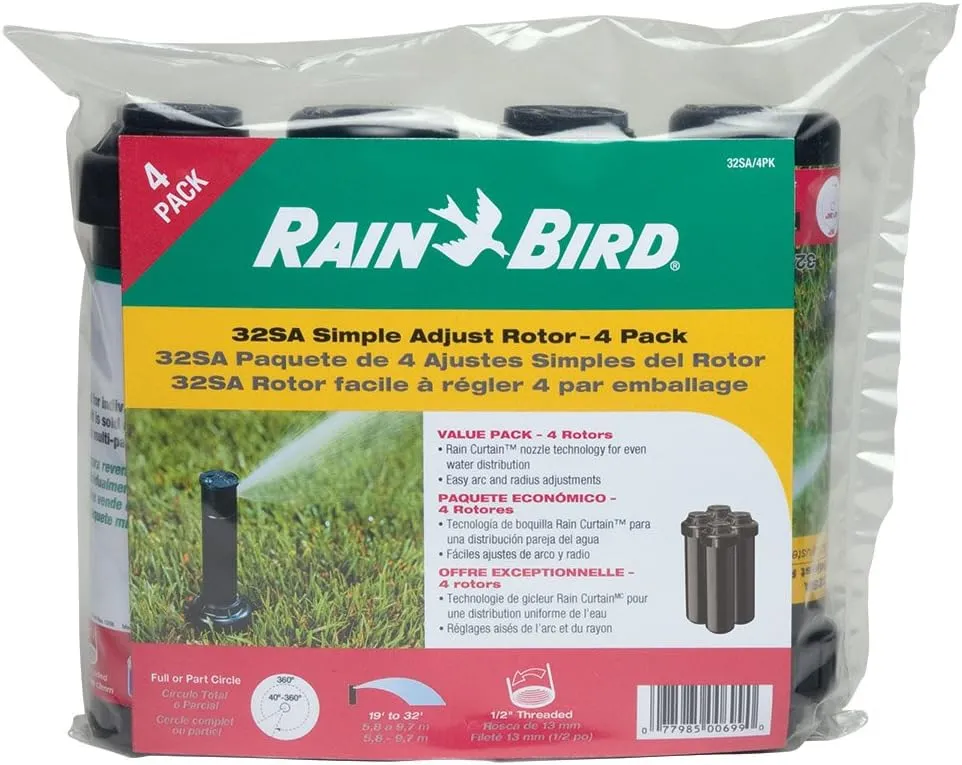

Rain Bird 32SA/4PKS Simple Adjust 32SA Gear Drive Rotor, Adjustable 40° to 360° Pattern, 19' to 32' Spray Distance, 4-Pack. This is a convenient and economical 4-pack of Rain Bird 32SA gear drive rotors. With its intuitive adjustments and impressive coverage uniformity, the Rain Bird 32SA gear drive rotor will water all areas of your lawn evenly; reducing water use and providing greener, healthier grass. The many safeguards and trouble-free features built into our closed-case rotor sprinkler make it the perfect choice for any home landscape. Quick check arc/fast forward feature allows you to check or set arc while sprinkler is running. Easily adjusts at the top with a flat blade screwdriver from 40° to 360° part-circle arc rotation, and reversing full-circle rotation to ensure you're watering only things that grow, not the house, sidewalk, or driveway. For installation convenience arc rotation is factory preset at 180°. Rain Bird's patented industry-leading Rain Curtain™ nozzle technology delivers a uniform, rotating curtain of large water droplets that fall exactly where you want and resist windblown overspray. The nozzle's "micro ramps" also direct a portion of the spray close to the head eliminating dry brown spots common with other rotor brands. The nozzle's superior coverage uniformity helps reduce watering time saving money on water bills. A nozzle removal feature and easily removable filter screen makes maintenance a breeze. The protected closed-case design makes the 32SA ideal for “creeping” grasses, sandy soil and other harsh surroundings. Water-lubricated, gear-driven design provides long-lasting dependability; true 4" pop-up height clears taller grass. Dual-action, positive-stop wiper seal protects internal mechanisms from debris while assuring positive pop-up and retraction. O-rings and seals for extra protection in “gritty” water; and a self-adjusting stator that doesn't require replacement when changing nozzles. Rotor comes with a preinstalled 3.0 gallons per minute nozzle designed for a throw distance of 19' to 32' at common residential water pressure of 45-55 psi. Nozzle is easily removable and additional nozzles are available sold separately (Model# 32SANZLPK) to customize watering based on your specific flow rate and system requirements. 1/2" NPT female bottom threaded inlet. Rain Bird "The Intelligent Use of Water"
Amazon.com

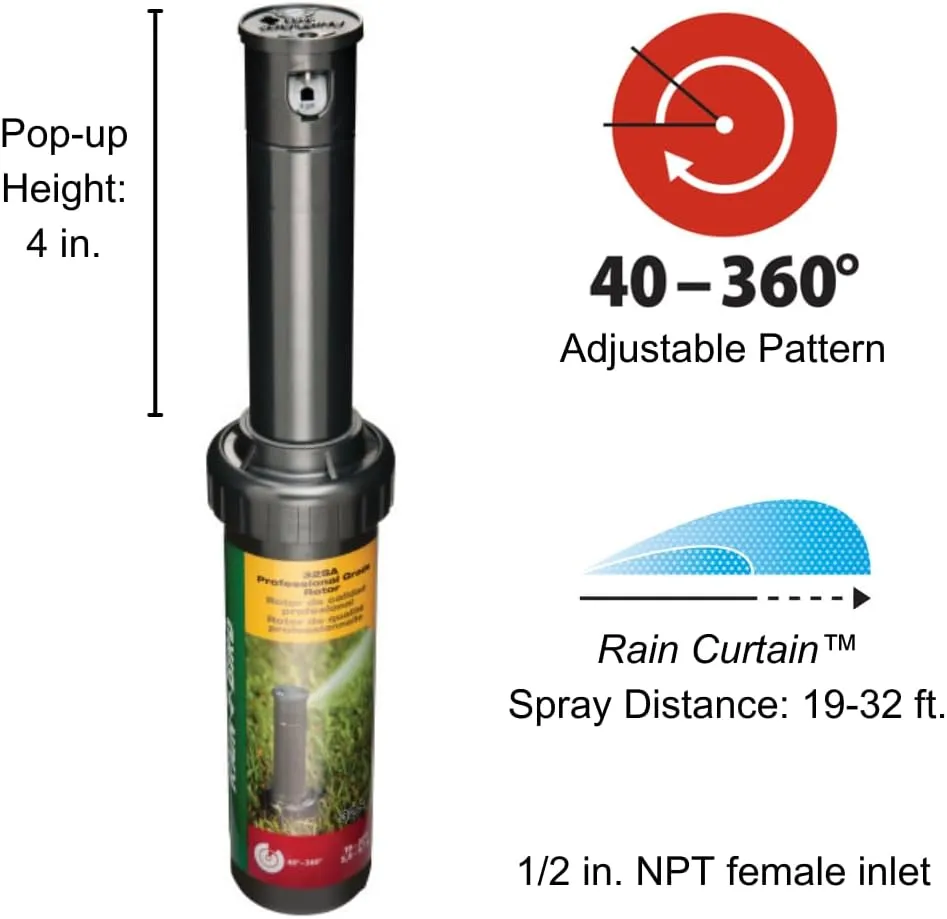

With its intuitive adjustments and impressive coverage uniformity, the Rain Bird 32SA gear drive rotor will help you water all areas of your lawn evenly, reducing water use while giving you greener, healthier grass. The rotor adjusts easily at the top with a flat blade screwdriver to ensure that you're watering only things that grow, not the house, sidewalk, or driveway. Installation is simple: the 32SA mounts on a standard 1/2-inch riser for simple replacement of older rotors, and provides a true 4-inch pop-up height to clear taller grass. The rotor also includes a water-lubricated, gear-driven design that provides long-lasting dependability, along with a dual-action, positive-stop wiper seal that protects the internals from debris while assuring positive pop-up and retraction to save water.

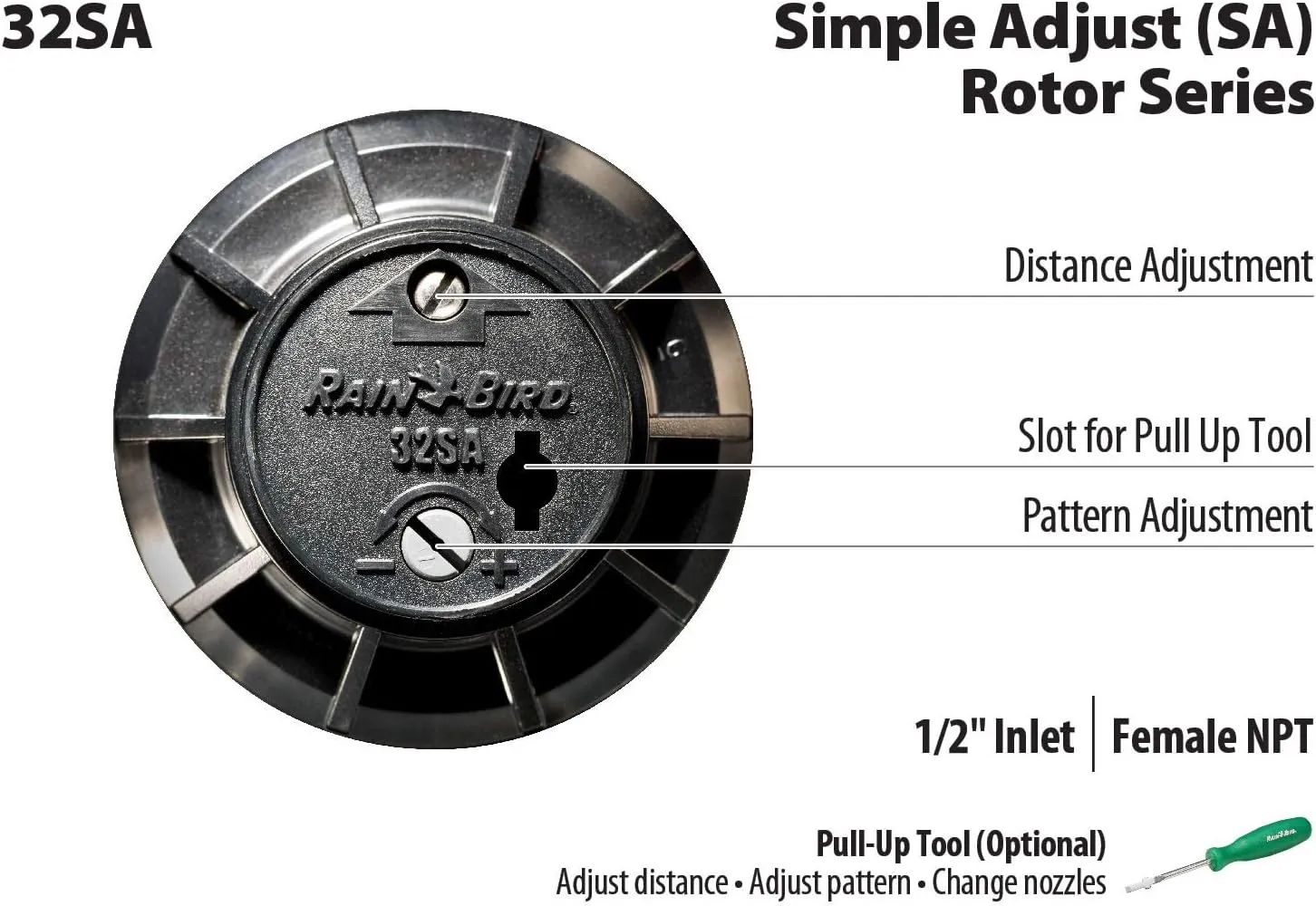

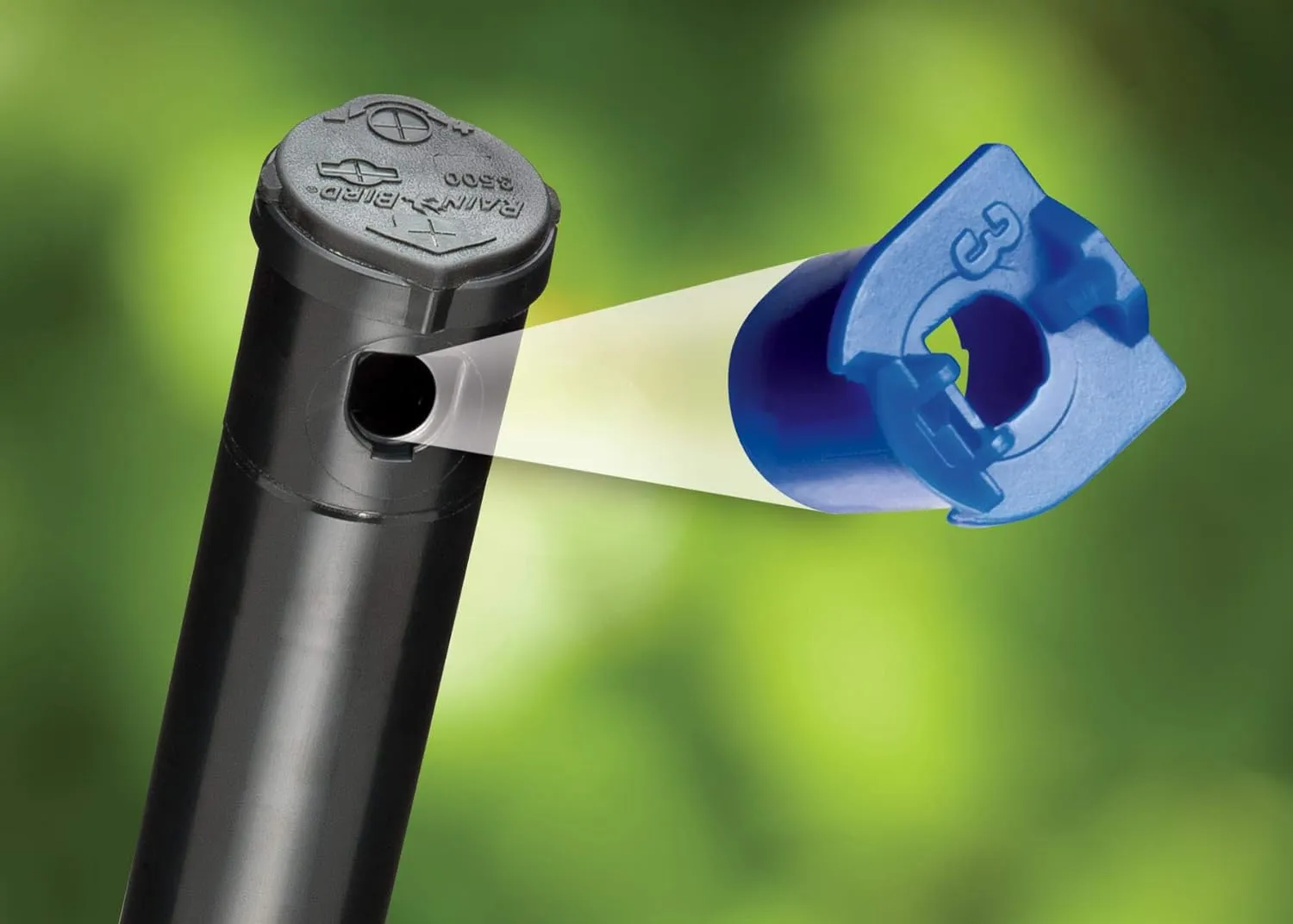

The 32SA's Rain Curtain nozzle ensures uniform coverage. (View larger). The sprinkler head adjusts from 40 to 360 degrees using a flat head screwdriver. (View larger). Rain Curtain Nozzle Technology

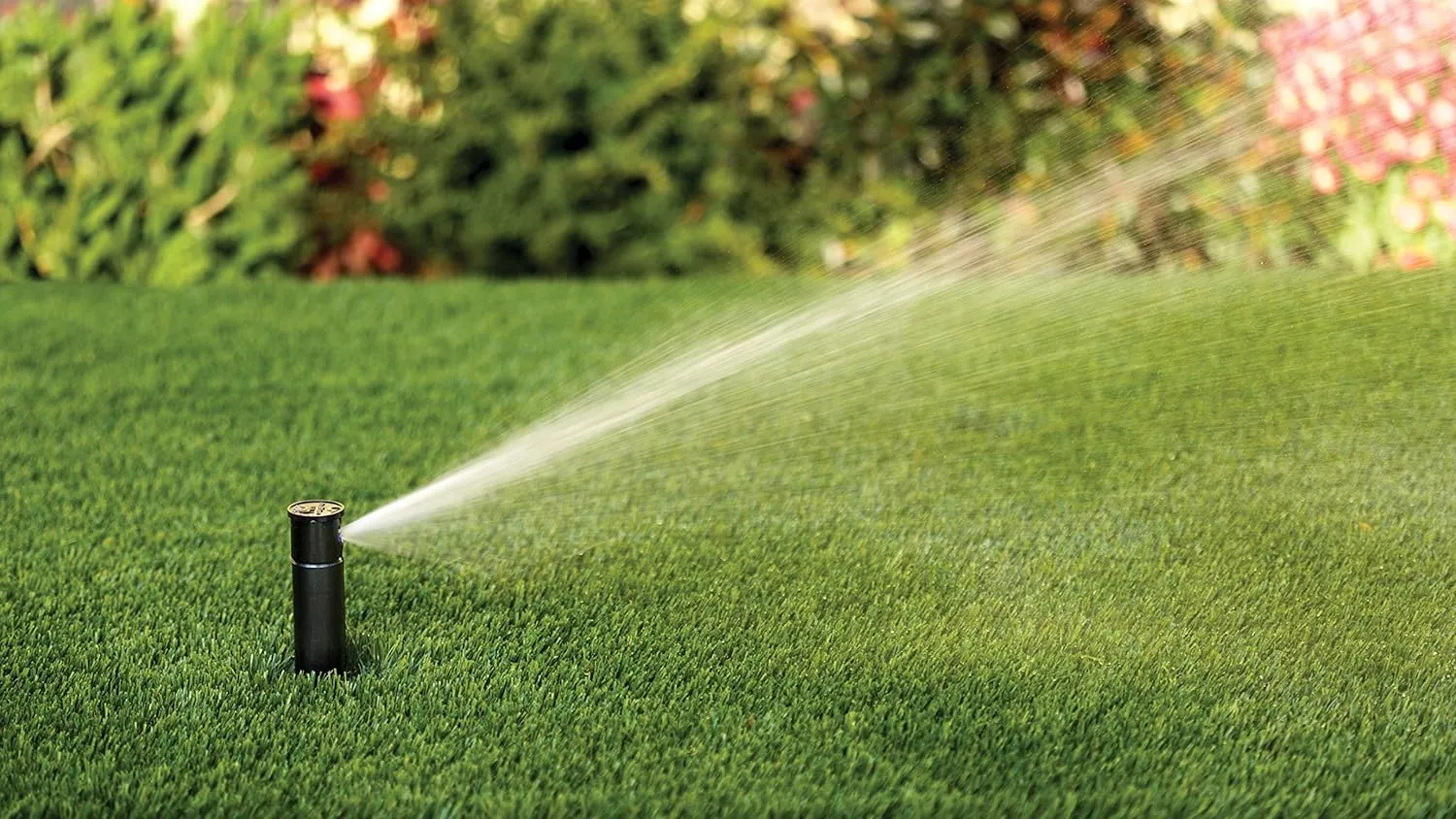

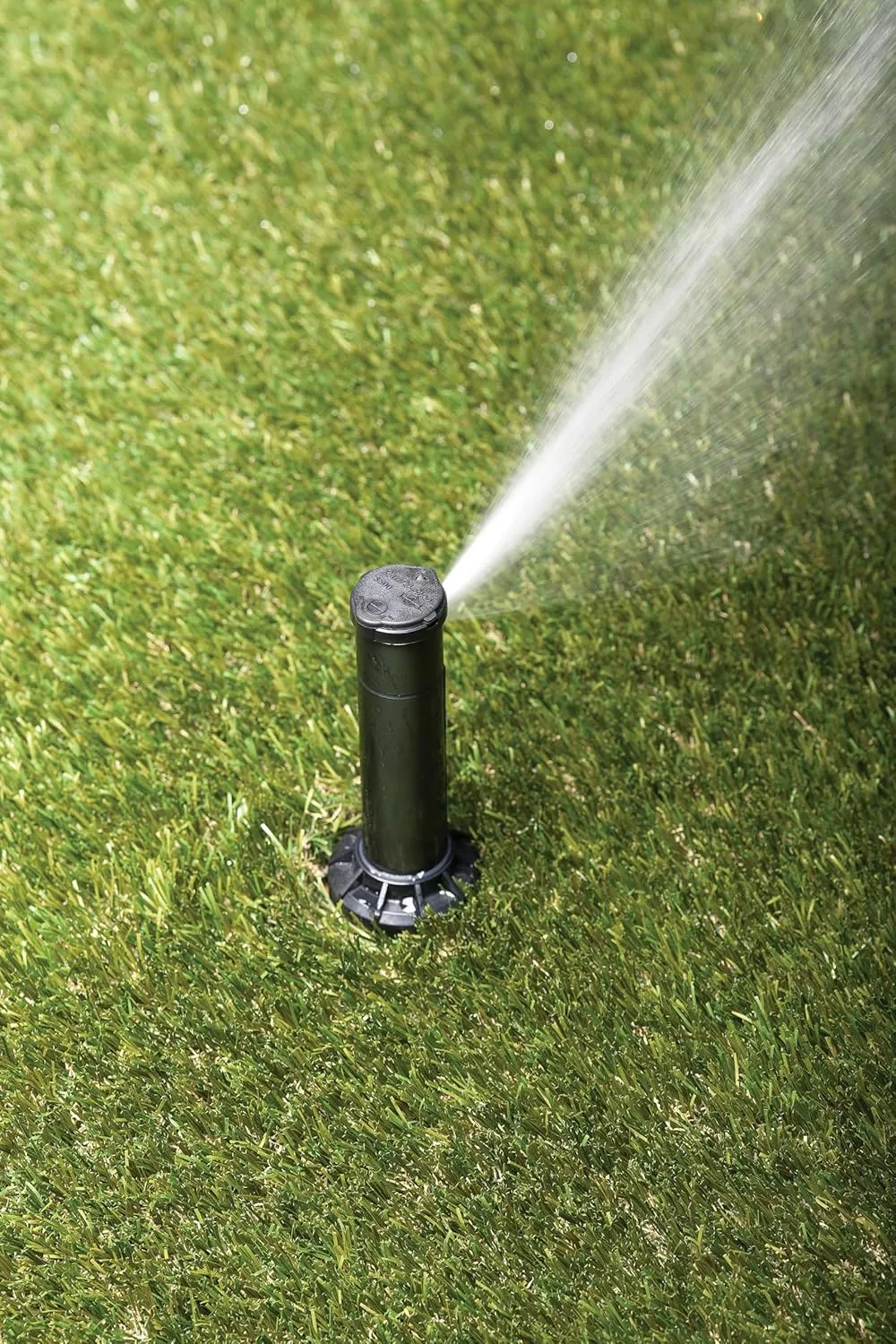

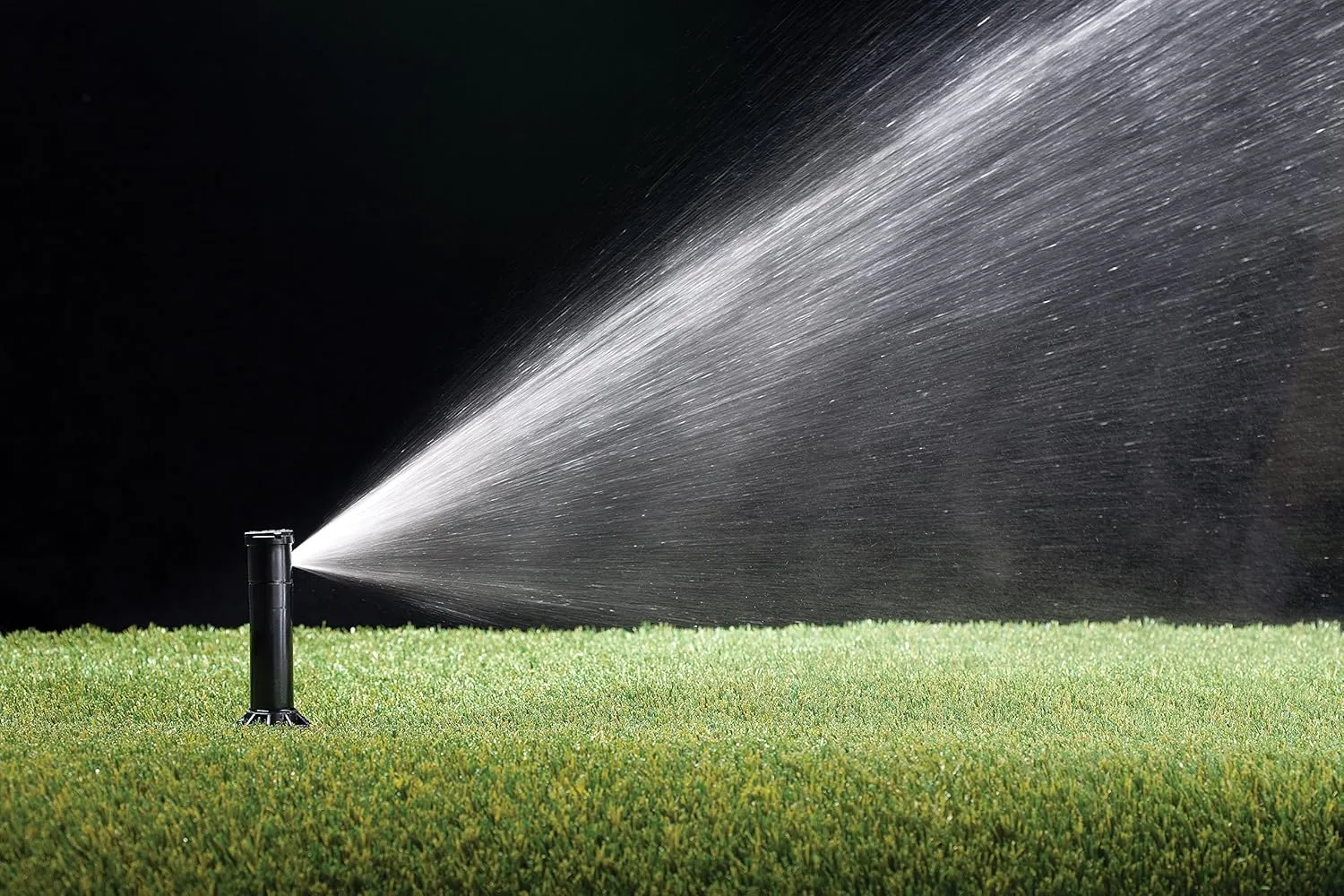

Among the 32SA's rotor advances is its Rain Curtain nozzle design, which produces larger water droplets that fall exactly where you want them, resisting windblown overspray. The nozzle's "micro ramps" also direct a portion of the spray close to the head, eliminating the dry brown spots common with other brands. The nozzle's superior coverage uniformity helps you reduce watering time on your rotor zone, saving money on water bills.
Adjusting Arc

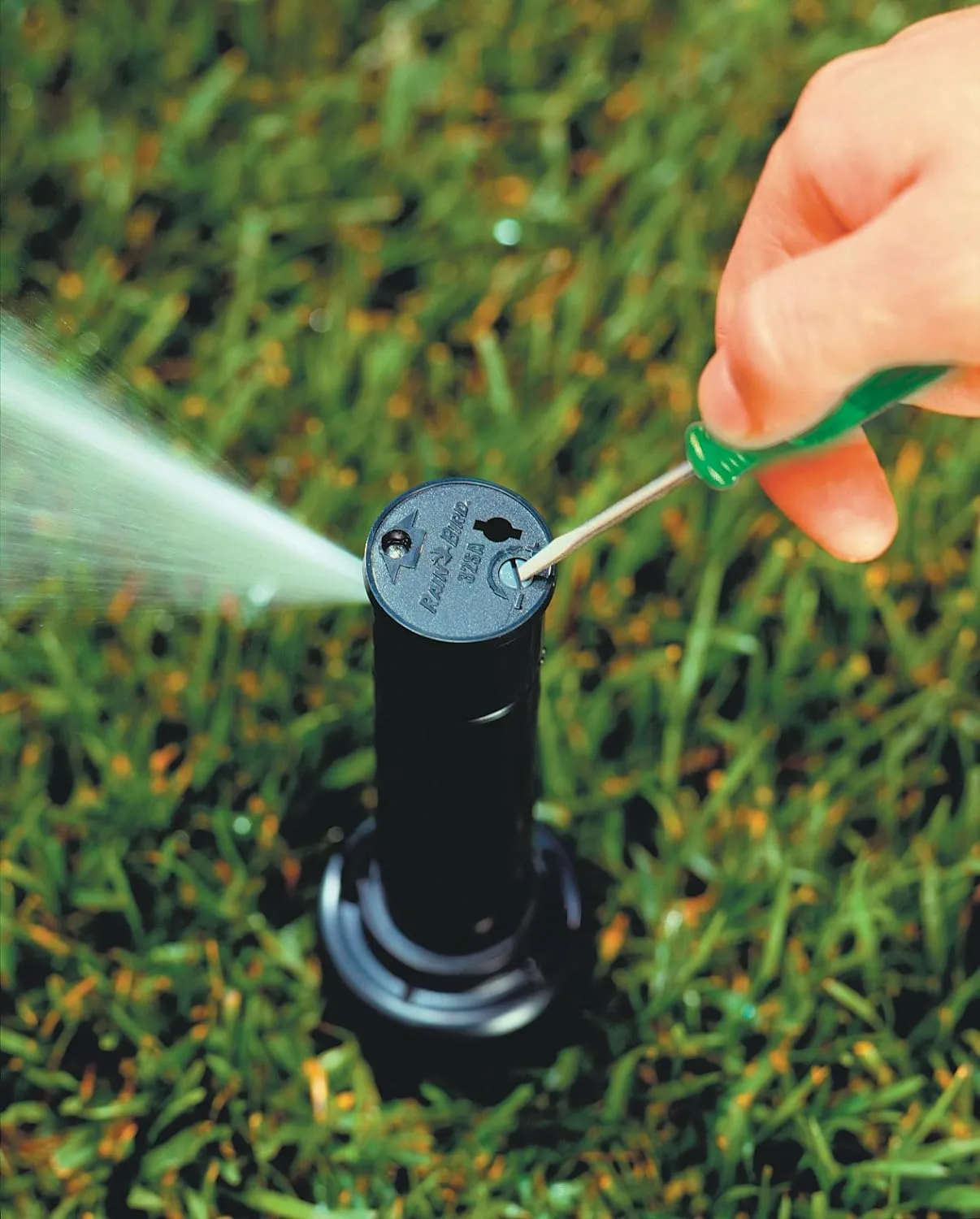

To set up the 32SA sprinkler's rotation (arc), turn on the water and rotate the shaft by hand to the right until it stops, and then to the left until it stops. That is your fixed left edge. Then turn the entire rotor until it is lined up with where you want the sprinkling pattern to start on that left edge. The rotor is preset at the factory to rotate 180 degrees from that left starting point. To change the arc from its preset rotation, make final adjustments with the top screw using a screwdriver, increasing or decreasing as desired.
Adjustable Spray Distance

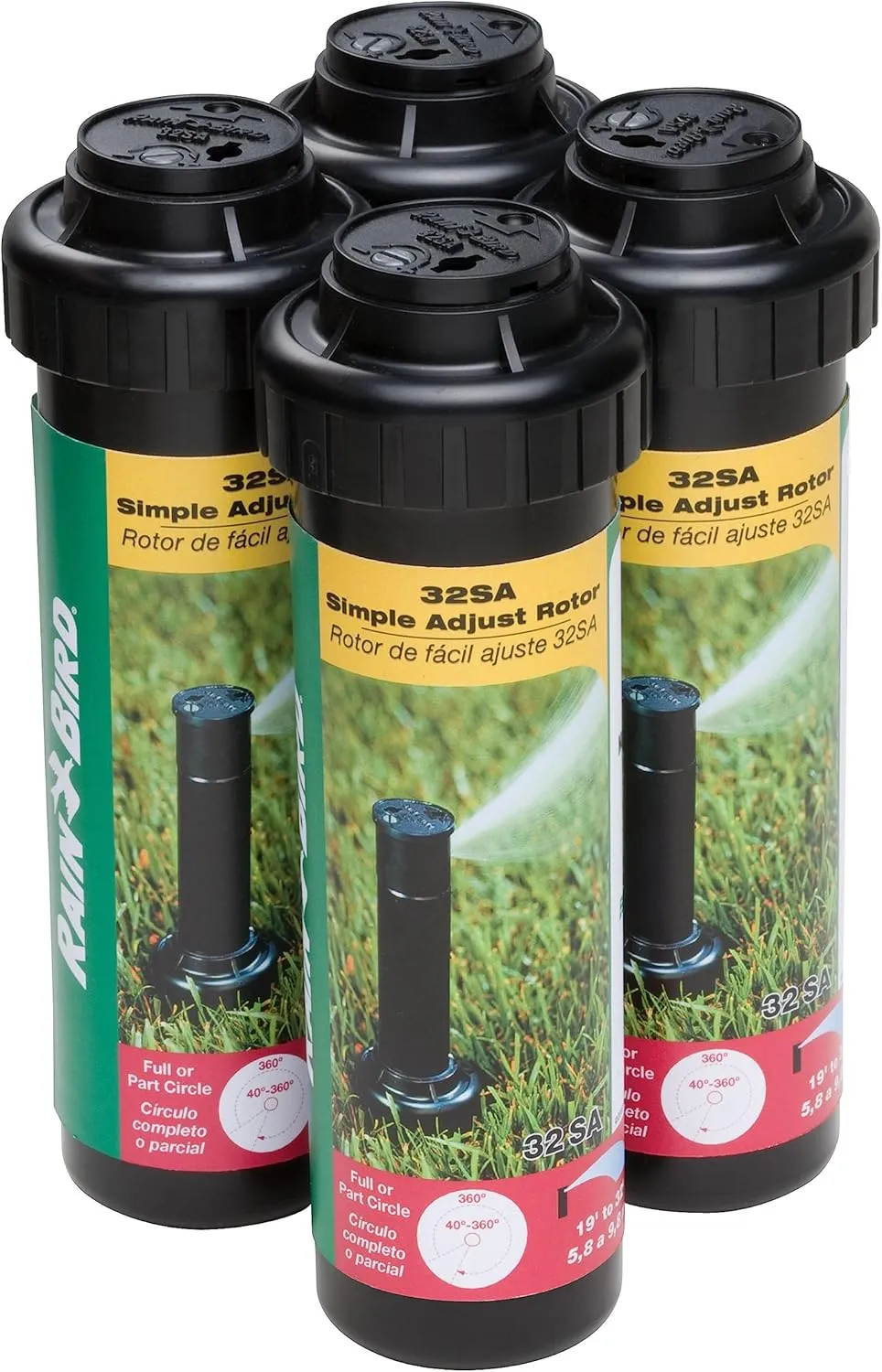

The rotor comes with a 3.0 GPM nozzle rated to a throw distance of up to 32 feet at common residential water pressure (45 PSI). You can reduce throw distance up to 35 percent by turning the screw located above the nozzle using a flat blade screwdriver. This bundle comes with four individual 32SA rotors.
From the Manufacturer
Rain Bird Corporation is a privately held company founded in 1933 during the agricultural boom in California. We’re recognized as the #1 manufacturer and provider of irrigation products and services in the world. With sales offices around the globe; we offer over 4,000 water-saving irrigation products in more than 130 countries. Since the very beginning, Rain Bird has produced and offered the industry’s broadest range of high-quality irrigation products for: farms, golf courses, sports arenas, commercial developments and homes. Over the past 80-years Rain Bird has received more than 450 patents worldwide. Including the first one for irrigation in 1935 on our original impact-drive sprinkler (U.S. Patent #1,997,901) which revolutionized agricultural food-production and ushered in a new era in irrigation worldwide. In 1990 this original impact sprinkler was designated a historic landmark by the American Society of Agricultural Engineers. Our products cover all aspects of irrigation…timers/controllers, pop-up rotary sprinklers, pop-up spray head sprinklers, sprinkler nozzles, irrigation valves, Drip irrigation, drainage and much more. These products have been chosen and installed worldwide in the largest and most prestigious projects for residential, commercial, agricultural and golf course irrigation. Rain Bird is committed to The Intelligent Use of Water™ extending beyond products to education, training and services for the industry and the community. Our legacy is to design and manufacture only products of the highest value and quality. We’re grateful to have received numerous recognition awards from many of our valued partners. Rain Bird “The Intelligent Use of Water"
